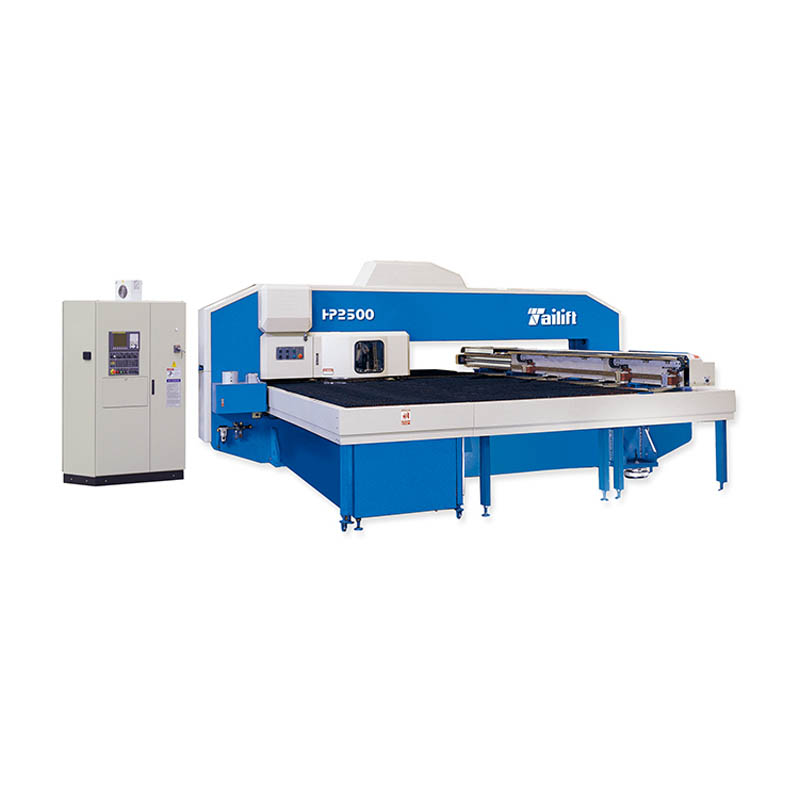

Product Description
Details
1. FANUC OI-PC CNC CONTROLLER
2. HYDRAULIC SERVO UNIT / POWER UNIT
3. AUTO. INDEX (2 D type 3-1/2")
4. TOOL BOX WITH TOOL ADJUSTMENT & MAINTENANCE TOOLS
5. 4 SETS ANTI-VIBRATION FOOT MOUNTINGS
6. THREE PNEUMATIC CLAMPS
7. 40 STATIONS TURRET
8. PUNCH ASSEMBLING JIG
9. SCRAP TRAY AND WORK LIGHT
10. 160 METER MEMORY CAPACITY( 61 KB )
11. BALL & BRUSH WORK TABLE
12. OPERATION & MAINTENANCE MANUAL
Product Specifications
| Item | Unit | HPS1250 | HPS1250X | HPS2500 |
| Punching Capacity | Tom | 20 | 20 | 30 |
| X Traverse Length | mm | 1250±10 | 2490±10 | 2490±10 |
| Y Traverse Length | mm | 1250±10 | 1250±10 | 1525±10 |
| Max Sheet Size | mm | 1250x2500 | 1525x4980 | 1525x4980 |
| Max Sheet Thickness | mm | 6.35 | 6.35 | 6.35 |
| Max Sheet Weight | kg | 110 | ||
| X Axis Traverse Speed | m/min | 75 | 80 | 80 |
| Y Axis Traverse Speed | m/min | 60 | 70 | 70 |
| Max Traverse Speed | m/min | 96 | 105 | 105 |
| Punch Speed at | hist/min | 360 | ||
| 25mm Between Holes | ||||
| Nibbling Speed | hist/min | 600 | ||
| Tools Type | Thick turret | |||
| Max Punching Diameter | mm | 88.9 | 88.9 | 114.3 |
| Number of Tool Stations | 36 | 36 | 40 | |
| Number of Auto Index Stations | 2/(BType) | 2/(BType) | 2/(DType) | |
| Turret Rotating Speed | rpm | 40 | ||
| Auto Index Rotationg Speed | rpm | 50 | ||
| Ram Stroke Distance | mm | 0~31(油壓伺服軸) | ||
| Working Tables Size | Brush | |||
| Number of Sheet Clamps | 2 | 2 | 3 | |
| Power Supply | KVA | 25 | ||
| Air Supply | NL/min | 250 | ||
| Oil Tank Volume | L | 350 | ||
| Air Pressure | bar | 5 | ||
| Machine Size | mm | 4455x2630x2100 | 4535x2630x2380 | 4905x5140x2380 |
| Net Weight (apporx) | kg | 11000 | 13000 | 13500 |
| Size of Control Cabinet | mm | 1200x600x1900 | ||
| CNC Controller | FANUC Oi-PC | |||
| Number of Controllable Axes | 5+1 | |||
| Memory | KB | 256 | ||
| Serial Interface | RS232 | |||
| Punching Accuracy | mm | ±0.1 | ||
