CNC Control Units

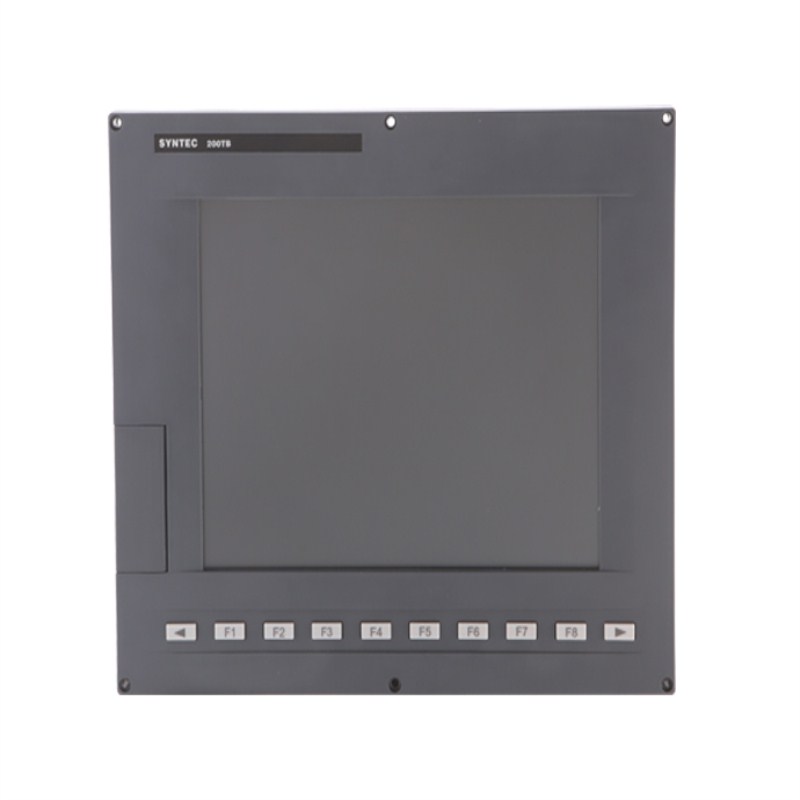

SKU: 200TB
- Able to control up to 4 axis groups
- Equipped with multi-program application
- Brand-new multi-program HMI
- Meet the demands for application of mill-turn machine
Product Description
Details
- Able to control up to 4 axis groups
- Equipped with multi-program application
- Brand-new multi-program HMI
- Meet the demands for application of mill-turn machine
Brand-New Human Machine Interface
-Support dual-program, trio-program, quadro-program
-Machine coordinate system, program editing and processing monitor are displayed respectively
-Coordinate of axis groups will be shown individually and be simulated by graph at the same time
*Software version: 10.11-36
Expanded Multi-Axis Tool
-Support compensation Up to 12 Axes
-Easy grammar for G10 L1051
-Easily meet the requirements of multi-axis application
Spindles Tapping
-Spindle does not need to decelerate speed to zero
-Proceed tapping via the speed difference between twin spindles, which significantly reduces the tapping time.
Extreme Speed Threading Mode
-Improves threading result and efficiency by overlapping technique.
-Save more than 20% of the time.
Axis-Exchange Feature
-The turret of the first axis group can machining with the second spindle
-Reduces the number of machine tools, improves the flexibility and efficiency of machining
Tilting Plane Machining
-Function of rotating coordinates simplified the programming on the inclined surface.
-Milling, drilling, and tapping on the inclined plane can be easily implemented.
Product Specifications
| Model | 200TB |
| Storage(DISKA) | 256 |
| I/O standaed | 32/32 |
| PS/2 | 1 |
| RS-232 | 1 |
| RS-422/RS-485 | 1 |
| RS-485 | 0 |
| SRI | - |
| I/O optional | 96/96 |
| DA | 1 |
| screen | 8/10.4 |
| CF card | 2 |
| USB | 2 |
| RJ-45 | 2 |
| VGA output | 1 |
|
PRODUCT
|
|
| Model | 200TB |
| Model | 200TB |
| Max. Multi-Program | 4 |
| Max. Number of Table Tools | 4 |
| Look-Ahead | 2000 |
| Block Processing Time | 1000 |
| Max. PLC-Axis | 3 |
| Standard Axis | 12 |
| Max. Axis (optional) | 16 |
| Max. Spindle | 6 |
| Max. Simultaneous Axis Control | 4 |
| Min. Control Unit-mm | 0.0001 |
| Max. Number of Program Coordinate | 100 |
| Max. Number of Tool Length Compensation | 96 |
|
SERVO
|
|
| Model | 200TB |
| (A/B Phase) | - |
| general(CW/CCW) | - |
| mechatrolink II(YASKAWA serial) | O |
| mechatrolink III(YASKAWA serial) | - |
