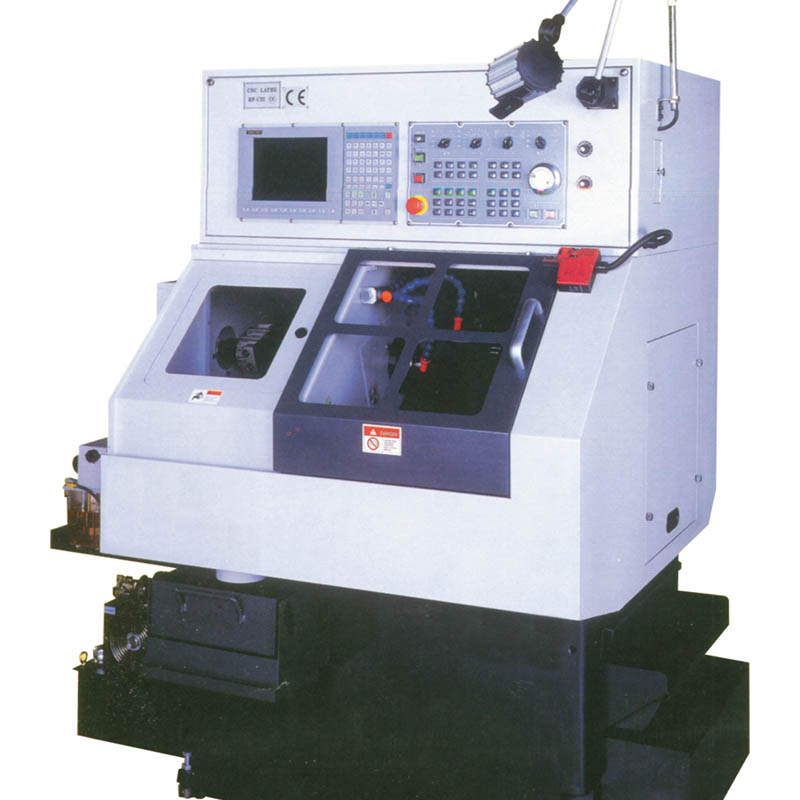

CNC TURNING MACHINES
SKU: RF-C42/C32/C20
Stable, High-speed spindle
The spindle is adopted P4 grade bearings. We use the control system of high-speed, high precision spindle, complete with C axis to do orientation function etc. It can promote processing efficiency and machine’s stability.
Product Description
Details
Stable, High-speed spindle
The spindle is adopted P4 grade bearings. We use the control system of high-speed, high precision spindle, complete with C axis to do orientation function etc. It can promote processing efficiency and machine’s stability.
Linear Sliding Rail And Lead Screw
The leading mechanism of Ballscrews for precision linear Guideway is operated by nut and and sliding block to get precision position and high-structure function.
MPG Test Function
Easily operation of controller, you can use MPG hand-wheel to test after program designed as well as prove program is correct to lathe products automatically. Enhanced efficiency, reduced cost, personal inaccuracy decreasingly.
Product Specifications
| RF-C32 | RF-C42 | RF-C20 | |
| Max. Turning O.D. (3 jaw) |
ø33 mm(ø100 mm)
|
ø43mm(ø100 mm)
|
ø21 mm |
| Max. Turning Length | 100 mm | ||
| Traverse X | 340 mm | ||
| Traverse Z | 110 mm | ||
| Spindle Motor | 4.4 kw | 4.4 kw | 2 kw |
| X-axis Motor | 0.75 kw | ||
| Z-axis Motor | 0.75 kw | ||
| Spindle Speed(3 jaw) |
0~6000 rpm(0~3000 rpm)
|
0~6000 rpm(0~3000 rpm)
|
0~6000 rpm |
| Rapid Trav. Speed (X-axis) | 16 m/min | ||
| Rapid Trav. Speed (Z-axis) | |||
| Min. Input Unit | 0.001 mm | ||
| O.D. Tool |
â–¡12 mm or â–¡16 mm
|
||
| I.D. Tool | ø20 mm | ||
| Tool Position |
Turning Tools 6 pcs, I.D. Turning Tools 4 pcs, Servo Motor Milling Device 1 pc Total Tools 11 pcs
|
||
| Coolant Pump Motor | 0.36 kw | ||
| Oil Tank | 130 L | ||
| Hydraulic Motor | 0.75 kw | ||
| Maching Dimension |
L1830xW1300xH1760 mm
|
||
| Net Weight | 1600 kg | 1725 kg | 1600 kg |
| Controller |
SYNTEC EMBALITY CNC
|
||
