CNC TURNING MACHINES

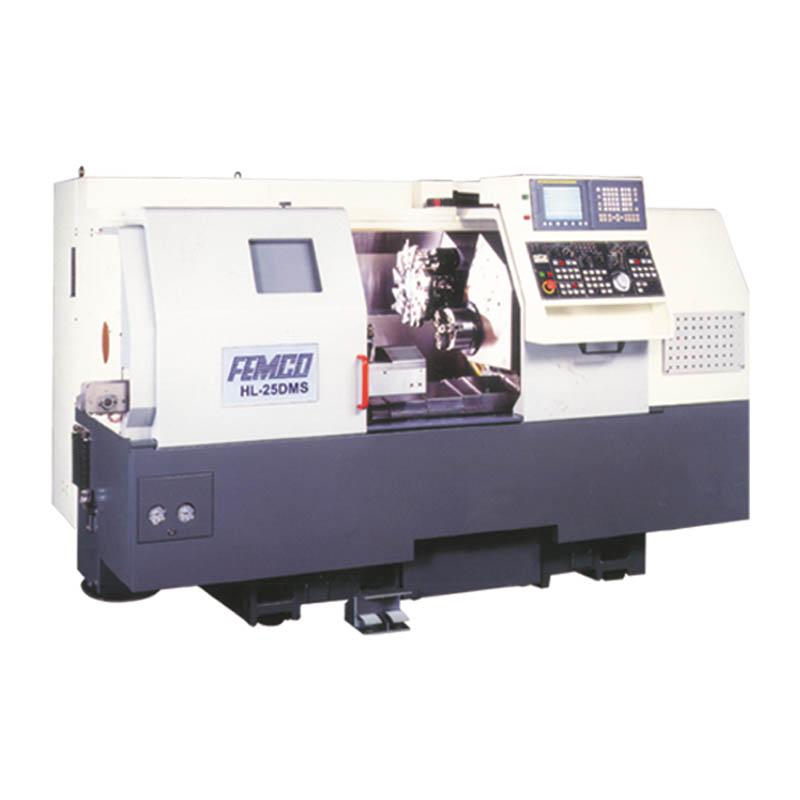

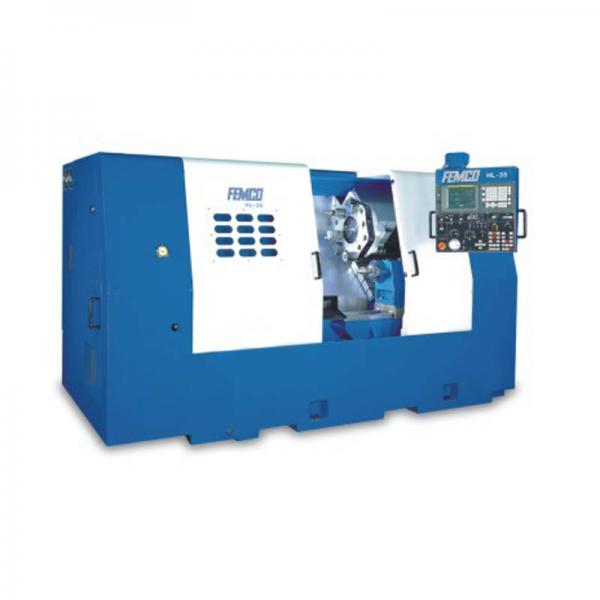

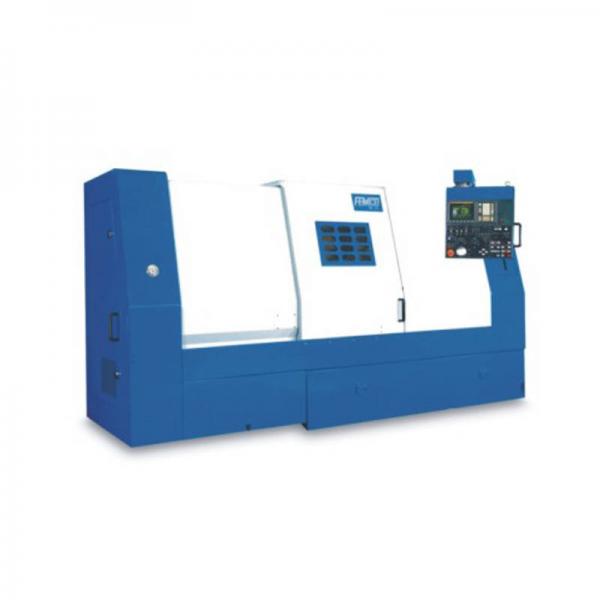

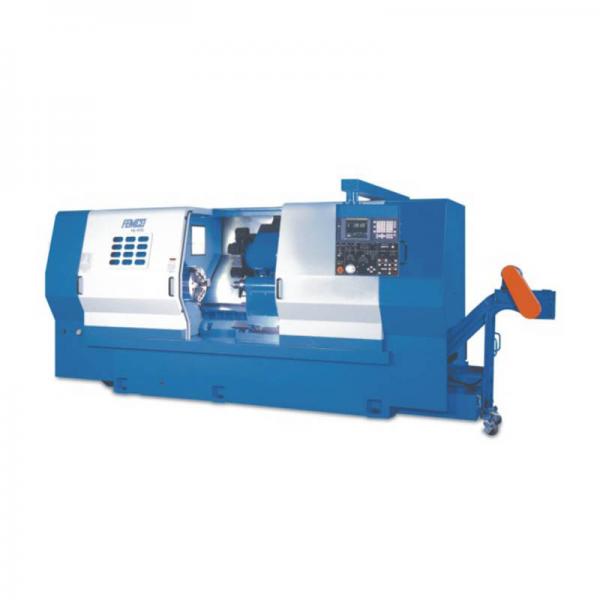

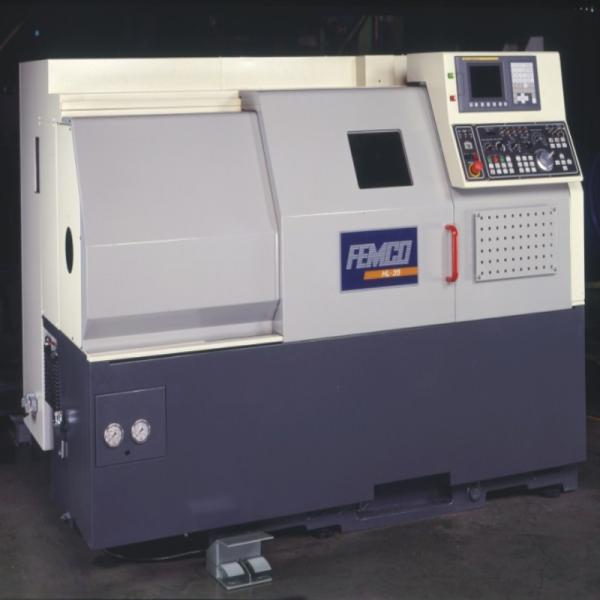

SKU: HL-25/35/45/55
UNSURPRSSED HIGH SPEED
HIGH PERFORMANCE AND HIGH PRECISION
Product Description
Details
UNSURPRSSED HIGH SPEED
HIGH PERFORMANCE AND HIGH PRECISION
Features :
Modular design provides variety of options for cost effective combination from bar feeder, parts catcher, tool presetter, bar puller to Genie robot.
4800rpm FANUC Alpha P22i wide speed range spindle drive provides 11/15kW output.
Meehanite base, saddle and headstock casting.
Precision heavy duty linear ball guide ways.
Choice of FANUC or Siemens CNC control.
The smallest footprint in its class.
Automatic lubrication system.
Straight bed construction.
Bed slideways are fitted with linear motion guides.
Product Specifications
| HL-25 | HL-35 | HL-45 | HL-55 | |
| Max. turning length | ø600 mm | ø675 mm | ø940/1440 mm | ø1070 mm |
| Max. swing over bed | ø450 mm | ø500 mm | ø635 mm | ø727 mm |
| Max. turning diameter | ø250 mm | ø360 mm | ø400/600 mm | ø620 mm |
| Spindle | ||||
| Speed | 4800 rpm | 4000 rpm | 2500 rpm | 2500 rpm |
| Spindle nose | A2-6 | A2-8 | A2-8 | A2-11 |
| Hole through spindle diameter | ø61 mm | ø87 mm | ø110 mm | ø130 mm |
| Bar capacity | ø51.5 mm | ø74.5 mm | ø89.5 mm | ø117 mm |
| Chuck diameter | 8" | 10" | 12" | 15" |
| Spindle motor direct drive | 11/15 kW | 15/18.5 kW | 18.5/22 kW | 20/30 kW |
| (Rated continuously/30min) | ||||
| Spindle diameter at front bearing | ø100 mm | ø130 mm | ø160 mm | ø170 mm |
| Turret | ||||
| Number of stations | 8, 12 | 12 | 12 | 12 |
| Turning tool OD/ID |
口25/ø40,口20/ø32
|
口25/ø50 | 口25/ø50 | 口25/ø50 |
| Turret clamping force | 25000 N | 68750 N | 67850 N | ------ |
| X-axis | ||||
| Traverse | 127 mm | 260 mm | 285/335 mm | 340 mm |
| Rapid traverse rate | 20 m/min | 20 m/min | 20 m/min | 16 m/min |
| AC servo motor | 1.6 kW | 3.0 kW | 3.0 kW | 4.0 kW |
| Ballscrew | ø32 X P10 | ø40 X P10 | ø40 X P10 | ø36 X P8 |
| Z-axis | ||||
| Traverse | 630 mm | 690 mm | 1000/1500 mm | 1250 mm |
| Rapid traverse rate | 24 m/min | 24 m/min | 24 m/min | 20 m/min |
| AC servo motor | 1.6 kW | 4.0 kW | 4.0 kW | 7.0 kW |
| Ballscrew | ø32 X P12 | ø50 X P12 | ø50 X P12 | ø50 X P12 |
| Tailstock | ||||
| Tailstock | 400 mm | 510 mm | 830/1330 mm | ø1094 mm |
| Quill diameter | ø70 mm | ø120 mm | ø120 mm | ø120 mm |
| Quill travel | 100 mm | 120 mm | 120 mm | 120 mm |
| Quill taper | MT#4 | MT#5 | MT#5 | MT#5 |
| Axial thrust of quill 5300 at 2mpa N | 11780 N | 11780 N | 11544 N | |
| Dimensions | ||||
| Width | 2150 mm | 3370 mm | 3885/5035 mm | 5225 mm |
| Depth | 1378 mm | 1942 mm | 2131 mm | 1706 mm |
| Height | 1700 mm | 1960 mm | 2040 mm | 2130 mm |
| Weight | 3250 mm | 6000 mm | 6400/7500 mm | 9000 mm |
