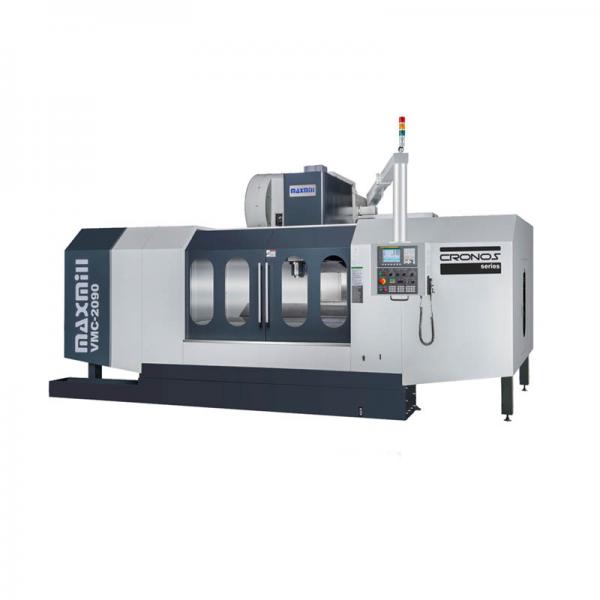

CNC Machining center
SKU: vmc-1680-2090
Two-speed gearbox for powerful transmission for spindle.
Extra large 4 box ways on base.
Semi-enclosed guard.
Choice of 24 or 32 chaintype magazine.
Meehanite cast iron for all structural parts.
BT 50 spindle taper.
Patented oil skimmer.
Integrated screw type chip conveyors.
Product Description
Details
Features:
Two-speed gearbox for powerful transmission for spindle.
Extra large 4 box ways on base.
Semi-enclosed guard.
Choice of 24 or 32 chaintype magazine.
Meehanite cast iron for all structural parts.
BT 50 spindle taper.
Patented oil skimmer.
Integrated screw type chip conveyors.
Standard accessories
Semi-enclosed guard.
Cutting coolant unit.
Heat exchanger in control box.
Auto power off.
Auto lubrication system.
Air blast through spindle.
Controller (Fanuc).
Leveling bolts and blocks.
Work lamp.
3 color light.
Tool box.
Arm Type ATC (24 tools).
Rigid tapping.
Spindle oil cooler unit.
Screw type chip conveyor.
Operation manual & electric drawing equipment.
Remote manual pulse generator.
Patented oil skimmer.
Direct-drive gear box.
Optional accessories
Full splash guard.
Armless (Umbrella) type ATC (16 tools).
Transformer.
CE regulation.
Coolant thru spindle (CTS).
Coolant thru ballscrew (CTB).
Adding 4th axis interface.
Built-in CNC rotary table.
Controller (Mitsubishi).
Controller (Siemens Series).
Spindle 10,000RPM.
Linear scale.
Oil mist unit.
Oil skimmer.
Chain type ATC (32 tools).
Link type chip conveyor and buket.
Tool length measurement system.
Workpiece measurement system
Product Specifications
| Item | VMC-2090 | VMC-1680 |
| Travel | ||
| X-axis | 2,000mm | 1600 mm |
| Y-axis | 900mm | 800 mm |
| Z-axis | 700mm | 700 mm |
| Spindle nose to table | 250 ~ 950mm | 200mm-900mm |
| Spindle center to column | 980mm | 850 mm |
| Feed Rate | ||
| X. Y. Z. axis rapid traverse | 10,000mm / min | 15000 mm/min |
| Cutting feedrate | 10,000mm / min | 12000 mm/min |
| Table | ||
| Table size | 2,300 x 970mm | 1800x750 mm |
| Max. loading capacity | 2,800kgs | 2000 kg |
| Slideway design on Y axis | 4 square slideways | 4 square slideways |
| Size of T-slots | 22 x 5 x 150mm | 22 x 5 x 150mm |
| Spindle | ||
| Spindle speed | 4,000RPM / 6,000RPM (opt.) | 4,000RPM / 6,000RPM (opt.) |
| Spindle taper | BT50 | BT50 |
| Transmission | 2-speed geared head | 2-speed geared head |
| Motor | ||
| Spindle motor | 18.5kw / 25HP | 18.5kw / 25HP |
| X, Y, Z, axis motor | 7kw | 4.5 kw/6 HP |
| ATC | ||
| Tool magazine capacity | 32 | 24/32 |
| Max. tool weight | 15kgs | 15kgs |
| Max. tool size (dia. x length) | Ø110 x 300Lmm | Ø110 x 300Lmm |
| Tool shank | BT50 | BT50 |
| General information | ||
| Machine net weight | 18,500kgs | 14000 Kgs |
| Floor space required (L x W x H) | 3,983 x 5,280 x 3,428mm | 3670x4610x3550 mm |
| Shipment advice | Flat rack container | Flat rack container |
