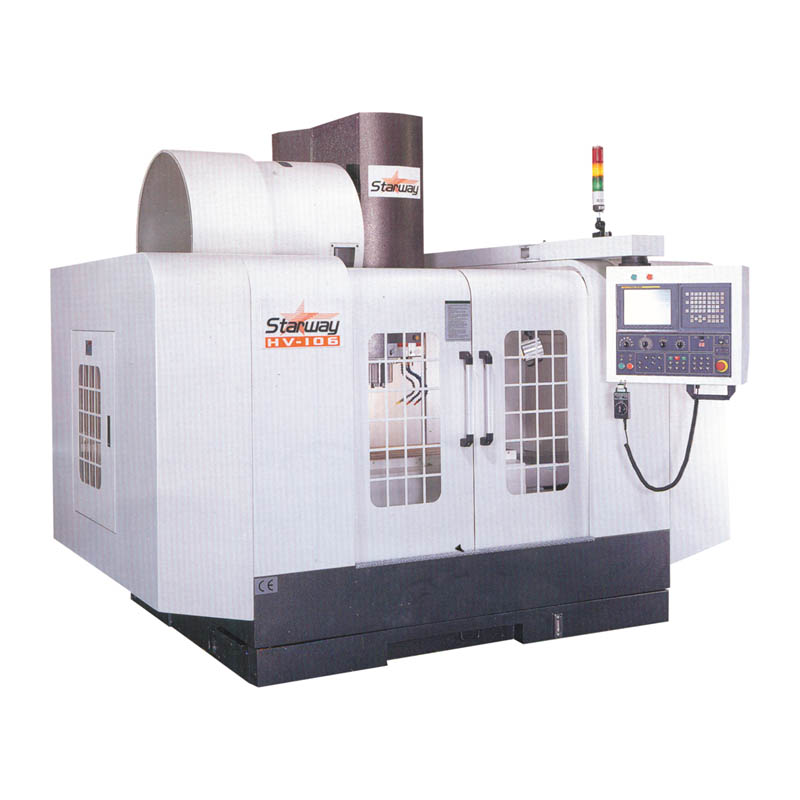

CNC Machining center
SKU: vmc 1060-1160
Linear ways on x, Y axis is optional.
4 oversized box ways on base.
8,000RPM belt-drive spindle.
Choice of 16, 24, 32-tool magazine.
BT 40 spindle taper (standard).
BT 50 spindle taper (optional / VMC-1160 series).
Full splash guard.
Screw type chip conveyor.
Product Description
Details
Features:
Linear ways on x, Y axis is optional.
4 oversized box ways on base.
8,000RPM belt-drive spindle.
Choice of 16, 24, 32-tool magazine.
BT 40 spindle taper (standard).
BT 50 spindle taper (optional / VMC-1160 series).
Full splash guard.
Screw type chip conveyor.
Standard accessories
Full splash guard.
Cutting coolant unit.
Heat exchanger in control box.
Auto power off.
Auto lubrication system.
Air blast through spindle.
Controller (FANUC).
Leveling bolts and blocks.
Work lamp.
3 color light.
Tool box.
Armless (Umbrella) Type ATC (16 tools).
Rigid tapping.
Spindle oil cooler unit.
Screw type chip conveyor.
Operation manual & electric drawing equipment.
Remote manual pulse generator.
Optional accessories
Semi-enclosed guard.
Arm Type ATC (24 tools).
Transformer.
CE regulation.
Coolant thru spindle (CTS)
Coolant thru ballscrew (CTB).
Adding 4th axis interface.
Built-in CNC rotary table.
Controller (Mitsubishi).
Controller (Siemens Series).
Spindle 10,000RPM.
Direct-drive spindle 12,000RPM.
Direct-drive spindle 15,000RPM.
Linear scale.
Oil mist unit.
Oil skimmer.
Patented oil skimmer.
Chain Type ATC (32 tools).
Link type chip conveyor and buket.
ZF 2 speed gear box.
Tool length measurement system.
Workpiece measurement system.
Product Specifications
| Item | VMC-1060 | VMC-1160 |
| Travel | ||
| X-axis | 1,000mm | 1,100mm |
| Y-axis | 600mm | 600mm |
| Z-axis | 600mm | 600mm |
| Spindle nose to table | 160 ~ 760mm | 160 ~ 760mm |
| Spindle center to column | 685mm | 685mm |
| Feed Rate | ||
| X. Y. Z. axis rapid traverse | 16,000mm / min (24,000mm / opt.) | 16,000mm / min (24,000mm / opt.) |
| Cutting feedrate | 10,000mm / min | 10,000mm / min |
| Table | ||
| Table size | 1,160 x 550mm | 1,260 x 550mm |
| Max. loading capacity | 900kgs | 1,000kgs |
| Slideway design on Y axis | 4 square slideways / 2 linear guideways (opt.) | 4 square slideways / 2 linear guideways (opt.) |
| Size of T-slots | 18 x 5 x 110mm | 18 x 5 x 110mm |
| Spindle | ||
| Spindle speed | 60 - 8,000RPM (option: 10,000RPM & 12,000RPM) | 60 - 8,000RPM (option: 10,000RPM & 12,000RPM) |
| Spindle taper | BT40 | BT40 / BT50 (opt.) |
| Transmission | Belt drive | Belt drive |
| Motor | ||
| Spindle motor | 11kw / 15HP | 11kw / 15HP (15kw / opt.) |
| X, Y, Z, axis motor | 3kw | 3kw (4kw / opt.) |
| ATC | ||
| Tool magazine capacity | 16 / 24 / 32 | 16 / 24 / 32 |
| Max. tool weight | 7kgs | 7kgs |
| Max. tool size (dia. x length) | Ø80 x 300Lmm | Ø89 x 250Lmm |
| Tool shank | BT40 | BT40 / BT50 (opt.) |
| General information | ||
| Machine net weight | 7,500kgs | 7,800kgs |
| Floor space require (L x W x H) | 2,880 x 3,200 x 2,734mm | 2,880 x 3,200 x 2,734mm |
| Shipment advice | 40" high cube container | 40" high cube container |
