Category:
IESmeasuring
SKU: Rokronel 500

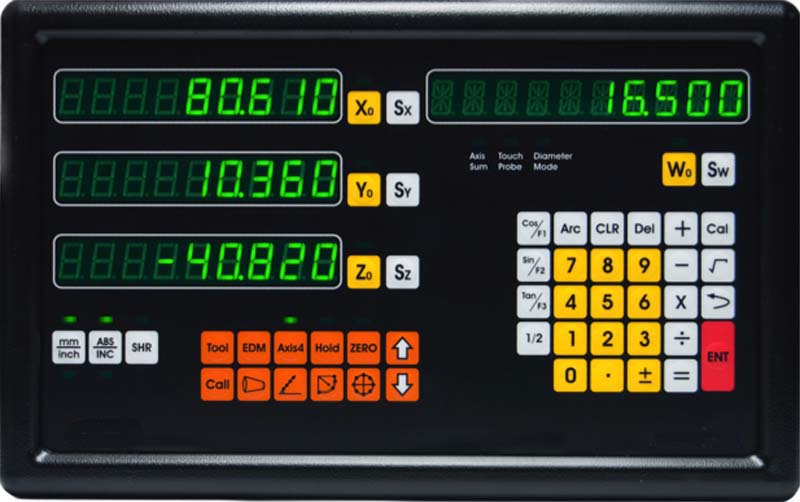

Digital readers, which provide ease of use with their advanced features, increase the efficiency of the machine tool.
Product Description
- 2, 3 or 4 axis options (RCEL502, RCEL503 or RCEL504)
- Universal Functions: Lathe, Milling, Bohrwerk, Erosion, Grinding
- Angle measurement
- Data transmission via RS232 Port, optional relay output
- User-defined resolution option
- 8 digits + 1 sign digit
- Aluminum injection case, easy assembly
- 1000 coordinate memory
- 6 different language options: Turkish, English, German, Spanish, Portuguese, Dutch
Details
Product Specifications
| Number of Axis | 2,3,4 |
| Indicator | 8 Digits + 1 Sign Digit (-), Green, Wandering (-) Sign |
| Available Resolution | 0,1µm, 0,2µm, 0,5μm, 1μm, 5μm, 10µm, 25 μm |
| Input Signal | Push Pull, TTL A,B,Z, (Line Driver A,B,Z,/A,/B,/Z) Increamental |
| Weight | 2,7 Kg |
| Supply Voltage | 85 – 265 VAC 50/60Hz. |
| Storage Temperature | 25 ~ 65 °C |
| Working Temperature | -10 ~ 45 °C |
| Relative humidity | 20% - 85% Non-Condensing |
| Size ( H x W x T) | 202mm x 320mm x 84mm |
| Body | Aluminum Injection |
| Limits of Measurement | - 99999,999 mm ~ 99999,999 mm |
