Product Description
Details
X/Y/Z linear guide way, Linear and ball screw made in Taiwan HIWIN OR PMI ,linear socket is roller type, syntec 22MA control system, feed servo motor and drive main motor and driver are all syntec, 10000rpm belt spindle made in Taiwan(continue run on 8000rpm) with oil cooler ,air and water coolant , seal front spindle,hand wheel,magnetic door lock
Product Specifications
|
Item |
feature |
unit |

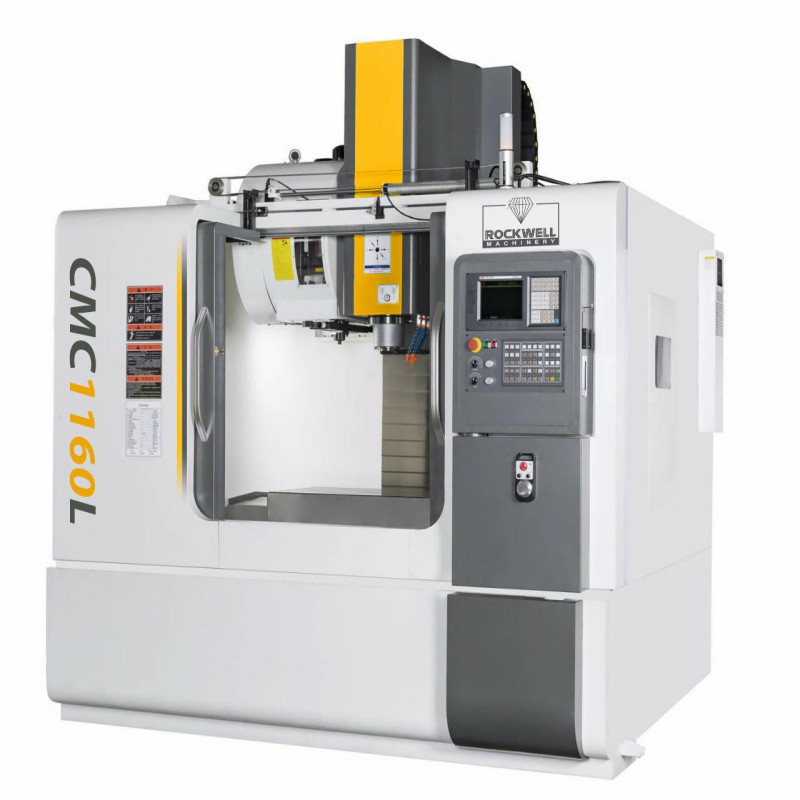

CMC1160L |
|
table |
Table size |
mm |
1100x600 mm |
|
T sot |
mm |
5 |
|
|
Max.loading |
Kg |
800 |
|
|
travel
|
X/Y/Z |
mm |
1100X600x600 |
|
Distance spindle nose to table surface |
mm |
150 X700 |
|
|
Spindle axis to column surface |
mm |
660 |
|
|
feeding |
Rapid speed X/Y/Z |
m/min |
30/30/24m/min |
|
Cutting speed X/Y/Z |
mm/min |
1-10000mm/min |
|
|
spindle |
Spindle taper |
|
BT40 |
|
Spindle speed |
r/min |
40-10000 (10000rpm belt spindle with oil cooler) |
|
|
Spindle capacity |
kw |
7.5/11 |
|
|
accuracy |
Positioning accuracy |
mm |
±0.005/300 JIS |
|
Repeat positioning accuracy |
mm |
±0.003 JIS |
|
|
ATC |
Tool magazine capacity |
n o s |
16(umbrella type) |
|
Max. Tool weight |
Kg |
7kg |
|
|
Max.tools dimension |
mm |
CD150x350 |
|
|
Min.time of tool change |
sec. |
7 |
|
|
machine |
Overall dimensions |
mm |
2800x2220x2800 |
|
Machine net weight |
Kg |
7000 |
