Category:
AC spindle motors
SKU: motor

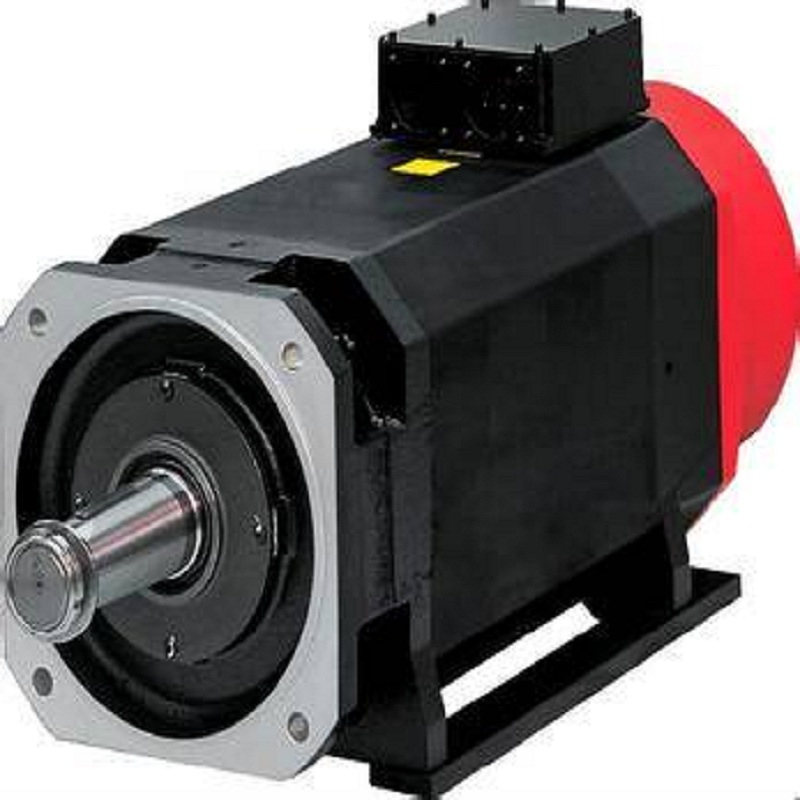

ZI8 series servo spindle motor, is a new type of AC spindle induction servo
motor with international advanced level which is making it go international
ZI8 series servo spindle motor has a compact structure, superior function, good shape and high efficiency, widely
used in various
fields of machinery manufacturing with very good cost performance.
The design and production of ZI8 series servo spindle meet is accord with relevant standards, such as ISO IEC GB
etc.
ZI8 series servo spindle motor can reach energy efficiency grade 2 of GBZ18613—2012 standard and IE3 of IEC60034—30 standard
Product Description
Details
ZI8 series servo spindle motor, is a new type of AC spindle induction servo
motor with international advanced level which is making it go international
ZI8 series servo spindle motor has a compact structure, superior function, good shape and high efficiency, widely
used in various
fields of machinery manufacturing with very good cost performance.
The design and production of ZI8 series servo spindle meet is accord with relevant standards, such as ISO IEC GB
etc.
ZI8 series servo spindle motor can reach energy efficiency grade 2 of GBZ18613—2012 standard and IE3 of IEC60034—30 standard
The latest patent design :
Good shape
Compact structure
Low noise
High efficiency
Enclosed cooling air duct
Optimal energy-saving design
Standard spindle control function :
High torque cutting at low speed
Constant power cutting with high speed
Zero speed spindle lock
C-axis function
Accurate stop control
Rigid tapping

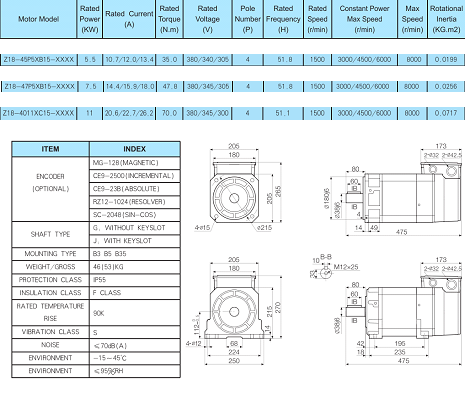

Product Specifications
Description
Specification:
• Power range:1 .1-315kw(50HZ)
Pole number: 4 pole
Max speed: 6000 or 8000 r/m
Encoder: Built-in(incremental encoder, rotary transformer,
sin-cos encoder, absolute encoder)
Cooling method: forced-air cooling
Working system: continuous duty (S1)
Installation structure type:B3/B5/B35(according to IEC60034-7standard)
• Noise: ≤70dB(A)
Protection class :ip55
Insulation and voltage resistance:AC1800V
Insulation class: F class
Vibration class: S
Environment temperature: -15-45®C
Environment humidity: below 95%RH (Non-condensate)
