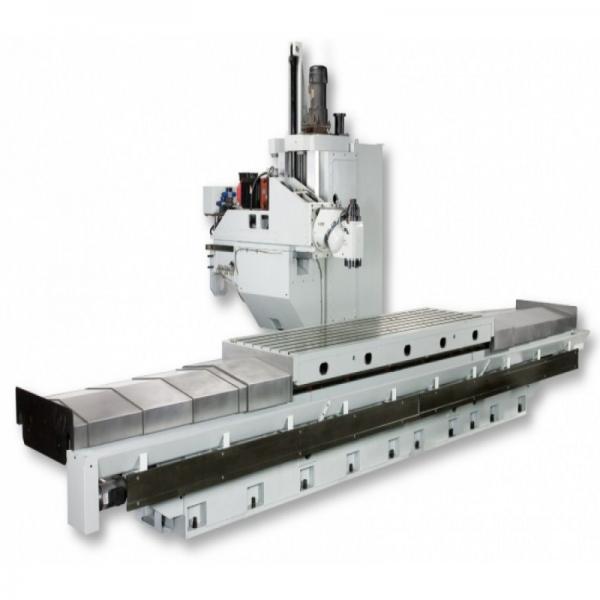

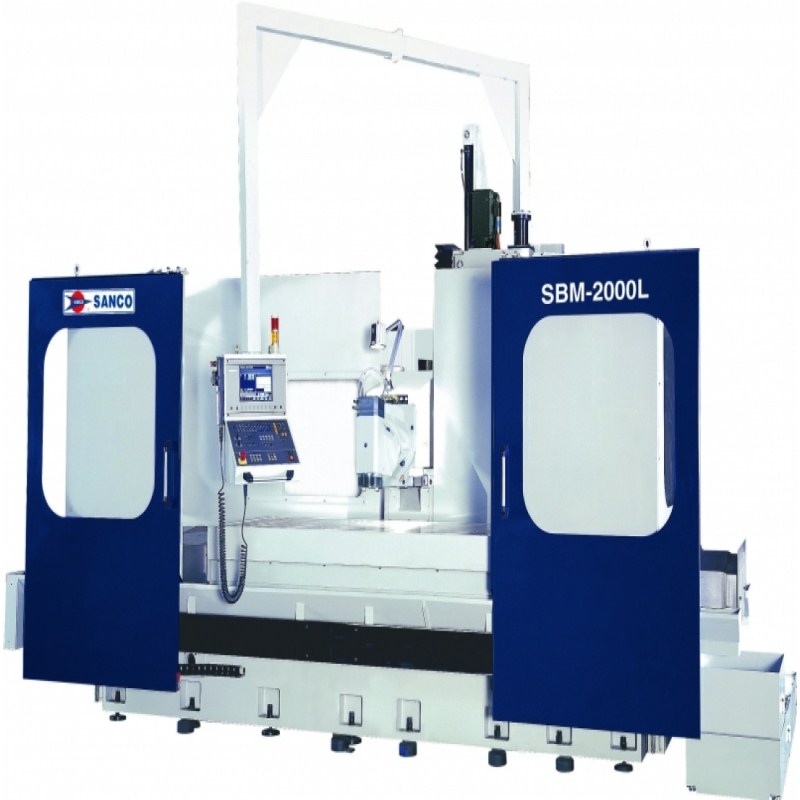

SBM Series SBM-2000L/2600L/3000L/3500L Bed Milling Machines - The Sanco CNC bed type universal milling machines are available in capacities from 2m to 3.5m and can be supplied with a standard horizontal spindle, manual universal head or automatic horizontal and vertical two position head. The machines can be supplied with automatic tool changers and rotary tables to suit different applications.
Product Description
Details
SBM Series SBM-2000L/2600L/3000L/3500L Bed Milling Machines - The Sanco CNC bed type universal milling machines are available in capacities from 2m to 3.5m and can be supplied with a standard horizontal spindle, manual universal head or automatic horizontal and vertical two position head. The machines can be supplied with automatic tool changers and rotary tables to suit different applications.
The overall sturdy design ensures stability, torsional rigidity and extremely high table load options. Major components are manufactured from heavily ribbed and reinforced Meehanite cast iron. The ballscrews are pre-loaded and pretensioned and the table runs on roller style linear guides to ensure maximum rigidity whilst ensuring precision positioning and accuracy due to the low friction. The vertical axis is hydraulically counter balanced for long term precision and smoothness.
Standard features:
Horizotnal Spindle
2 Step auto change gearbox
Optional:

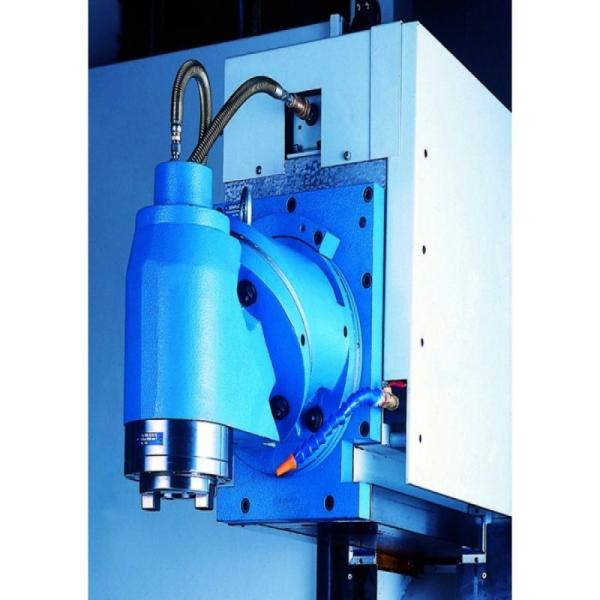

Manual universal milling head

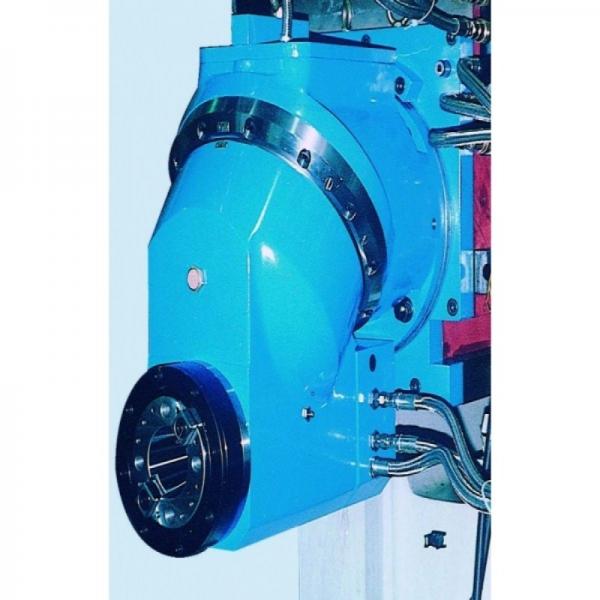

Auto 2 position universal milling head
Automatic tool changer option (ATC)Manual indexing table
CNC indexing table
Linear scale feedback
Spindle coolant system
Control options:
Fanuc / Siemens / Heidenhain
Product Specifications
| MODEL | UNIT | SBM-2000L | SBM-2600L | SBM-3000L | SBM-3500L |
| TABEL | |||||
| Working area | mm | 2100x1000 | 2700x1000 | 3100x1000 | 3600x1000 |
| T slots | mm | 22H8X7 Slots | |||
| Top to floor distance | mm | 860 | |||
| Load evenly distributed | kg | 5000 | 6000 | 7000 | 8000 |
|
TRAVEL (HORIZONTAL W/O OPTIONAL MILLING HEAD
|
|||||
| X-Axis | mm | 2000 | 2600 | 3000 | 3500 |
| Y-Axis | mm | 1200(1500) | |||
| Z-Axis | mm | 1000 | |||
|
HORIZONTAL SPINDLE
|
|||||
| Taper |
DIN 69871 # 50/BT 50
|
||||
| Speed | r.p.m | 4000(6000) | |||
| Output40%duty cycle | kw | 20 | |||
| constant output | kw | 18 | |||
| Max torque | Nm | 700 | |||
|
UNIVERSAL MILLING SPINDLE
|
|||||
| Taper |
DIN 69871 # 50/BT 50
|
||||
| Speed | r.p.m | 3500 | |||
| Output40%duty cycle | kw | 20 | |||
| constant output | kw | 16 | |||
| Max torque | Nm | 600 | |||
| FEED RATE | |||||
| Cutting | mm/min | 1 to 5000 | |||
| Rapid | mm/min | 10000 | |||
| BALL SCREWS | |||||
| X-Axis | mm/mm | dia 63x10 | |||
| Y-Axis | mm/mm | dia 50x10 | |||
| Z-Axis | mm/mm | dia 50x10 | |||
| Precision class | mm/300mm | 0.008x300 | |||
| ACCURACY | |||||
| Positioning | mm/300mm |
JIS 6338 0.003/300 VDI 3441/PS 0.014
|
|||
| Repeatability | mm |
JIS 6338 0.003/300 VDI 3441/PS 0.014
|
|||
| GENERAL | |||||
| Machine net weight | kg | 10500 | 12000 | 13000 | 14000 |
| Pneumatic required | kg/cm2 | 6 | |||
| hydraulic required | kw | 3.5 | |||
| Power required | Kva | 40 | 45 | 45 | 50 |
