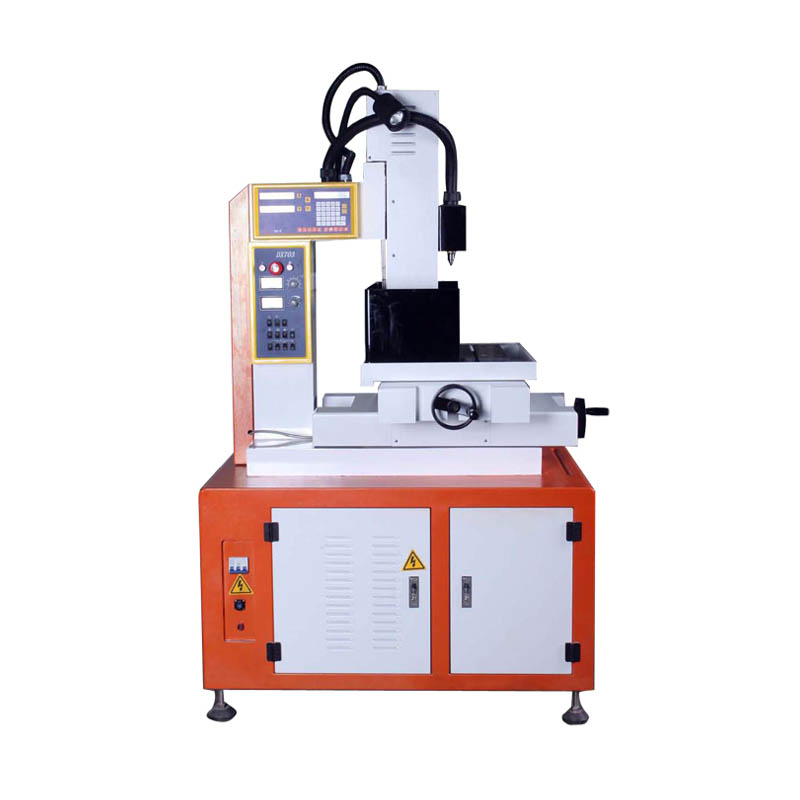

DM-Cut EDM Drilling AD Series
Category:
DM -CUT
SKU: AD703/AD703P/AD703Z
1- Ad703 and Ad703p adopt X,Y Digital display , Z axis adopt steel guide way
2- As703z adopt 3 axes Digital display and the X,Y,Z axes are with linear guide way .
There is function of preset depth of hole to be drilled and stop pulse generator when finishing drill of the preset hole .
3- Package : sea worthy packages
Ad703: 820*1120*1720mm, N/G weight : 680/880kg
Ad703z :820*1120*2020mm, N/G weight :680/900kg
Product Description
Details
| ITEM | AD703 | AD703P | AD703 | AD703Z |
| electrode diameter (mm) | φ0.2-φ0.4 | |||
| work head travel(mm) | 200 | 200 | 300 | 300 |
| Z-axis servo travel(mm) | 250 | 250 | 350 | 350 |
| max depth of the hole(mm) | 300 | |||
| Z-axis max adjust speed(mm) | 120 | |||
| rotation head (c-axis )Rev (rpm) | 60 | |||
| table size(mm) | 320*440 | 320*440 | 320*440 | 200*400 |
| X-Y travel(mm) | 200*300 | 300*400 | 300*400 | 300*400 |
| DRO | X,Y | X,Y | X,Y | X,Y,Z |
| max.space between the guider and work table(mm) | 250 | 250 | 350 | 350 |
| work table high(mm) | 920 | |||
| max .working current(A) | 30 | |||
| input max.power(KW) | 3 | |||
| power supply input way | 380/50Hz | |||
| coolant tank capability(L) | 25 | |||
| max.pump pressure(mpa) | 6 | |||
| overall dimension(L*W*H) | 800*1100*1700 | 800*1100*2000 | ||
| machine weight(Kg) | 600 | 800 | ||
