Category:
EDM Mchines
SKU: JMNC+NP+D

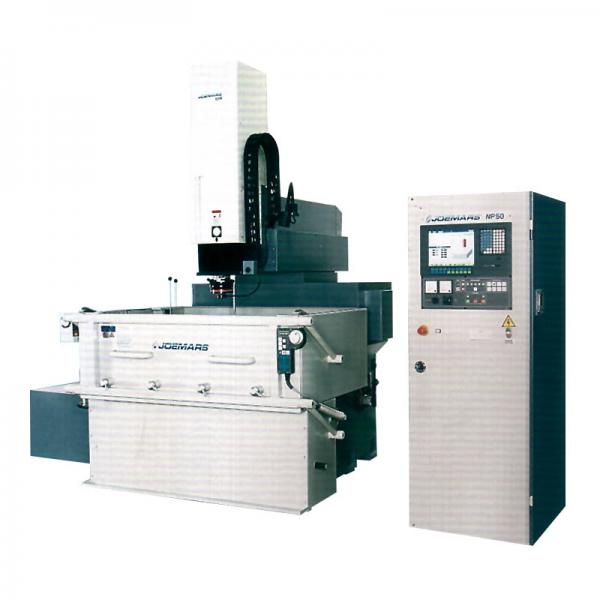

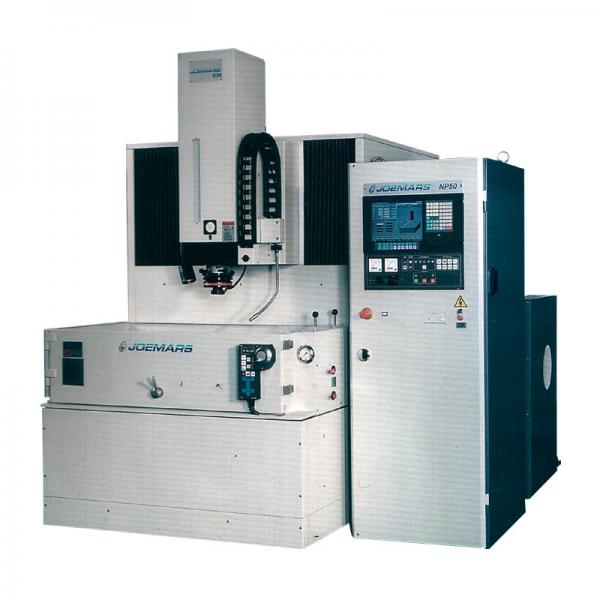

Developed by a group of top engineers and technicians with rich on ground and theoretical experience in the field of EDM, JMNC53+NP50+D53 renders superb engineering supremacy and unmatched mechanical features to outstand others.
Product Description
Details
Developed by a group of top engineers and technicians with rich on ground and theoretical experience in the field of EDM, JMNC+NP+D renders superb engineering supremacy and unmatched mechanical features to outstand others.
Industrial grade PC based CNC controller
12.1” TFT LCD color panel
Dialogue programming or GM code programming
Background editing
User Macro function
Multi language support
Machining path display
MPG positioning and discharging alignment
Multi-holes macro programming: Linear / Circular / Array / Arbitrary Multi-holes
Multi-conditions macro programming for finish machining
1000 machining condition tables with 1000 conditions in each table
17 kinds of Loran & Orbit function
LWF sparking circuit able to control the peak current rising slope, reduce the corner wear
Tracking mode OFF-TIME control circuit to prevent Arcing
All PC boards are sectioned in modular box design, reduce maintenance cost
STANDARD ACCESSORIES
Paper filters 1 set
Tool box 1 pc
Flushing nozzle 1 set
Drill chuck 1 pc
Clamping kit 1 set
Electrode holder 1 pc
Halogen machine work lamp 1 pc
Leveling pads 1 set
OPTIONAL ACCESSORIES
Auto fire extinguisher
Permanent magnetic table
Dielectric cooler
Auto Electrode Changer ( For CNC EDM only )
3 or 4 Tools for JMNC32A & JMNC43A
5 Tools for JMNC50 & JMNC53 / JMNC53P

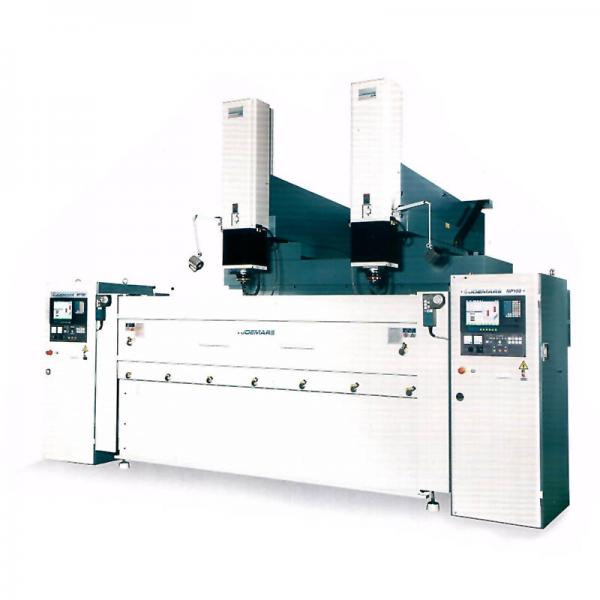

6 Tools for JMNC60 ~ JMNC2210S
C-axis ( For CNC EDM only )
Spare PCB set
Product Specifications

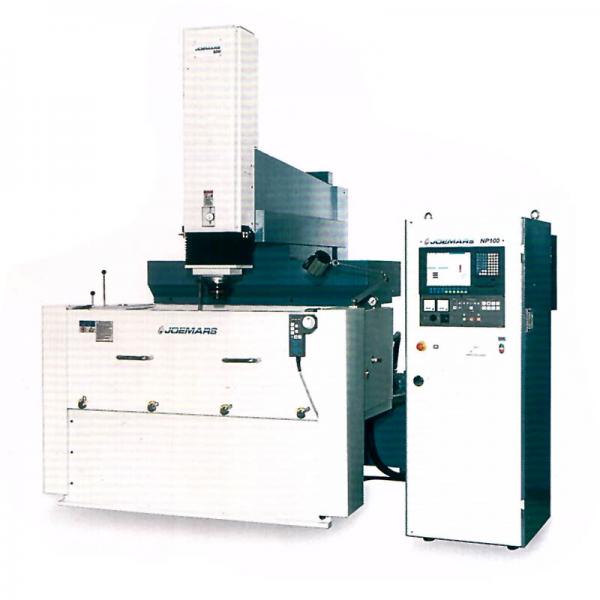

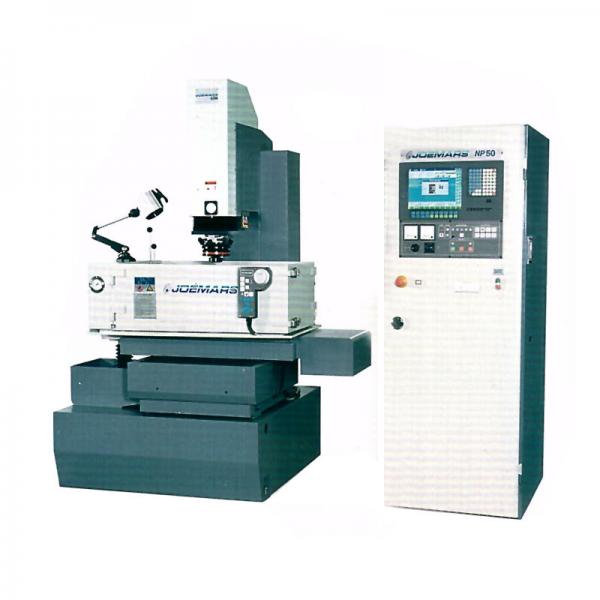

| ITEM | UNIT | JMNC32A+NP50+D32 | JMNC43A+NP75+D43 | JMNC50+NP75+D50 | JMNC60+NP100+D60 |
| Work table size | mm | 600 × 300 | 650 × 400 | 750 × 520 | 900 × 650 |
| X travel | mm | 300 | 400 | 500 | 600 |
| Y travel | mm | 200 | 300 | 400 | 400 |
| Z travel | mm | 300 | 350 | 350 | 350 |
| Ram platen to work table | mm | 167 ~ 467 | 290 ~ 640 | 270 ~ 620 | 255 ~ 605 |
| Max. electrode weight | kgs | 60 | 75 | 150 | 150 |
| Max. workpiece weight | kgs | 500 | 800 | 1200 | 2000 |
| Work tank ( W × D × H ) | mm | 845 × 510 × 300 | 1080 × 560 × 340 | 1290 × 715 × 420 | 1300 × 900 × 430 |
| Weight of machine unit | kgs | 1150 | 1400 | 1800 | 3000 |
| Machine Outside dimensions ( W × D × H ) | mm | 1675 × 1200 × 2075 | 1480 × 1900 × 2340 | 1875 × 1730 × 2375 | 1870 × 2495 × 2320 |
| Max. Machining Current | A | 50 | 75 | 75 | |
| Total Power Input | KVA | 4.5 / 6.5 ( with JMNC53P ) | 7 / 9 ( with JMNC53P ) | 7 / 9 ( with JMNC53P ) | |
| Max. Metal Removal Rate | mm3 / min | 390 | 610 | 610 | |
| Electrode Wear Ratio | % | 0.2 | 0.2 | 0.2 | |
| Best Surface Roughness | µm Ra | 0.20 ( without powder ) < 0.20 ( without powder ) | 0.20 ( without powder ) < 0.20 ( without powder ) | 0.20 ( without powder ) < 0.20 ( without powder ) | |
| Net Weight | kgs | 320 | 330 | 330 | |
| Outside Dimensions ( W × D × H ) | mm | 680 × 1070 × 1820 | 680 × 1070 × 1820 | 680 × 1070 × 1820 | |
| Dielectric tank capacity | L | 280 | 320 | 570 | 800 |
| Dielectric tank pump | HP | 0.5 HP × 1 | 0.5 HP × 1 | 0.85 HP × 1 | 0.85 HP × 2 |
| Dielectric tank net weight kgs | built-in | 100 | 150 | 200 | |
| Dielectric tank filter method | Paper filter | Paper filter | Paper filter | Paper filter | |
| Dielectric tank outside dimensions ( W × D × H ) | mm | built-in | 850 × 1150 × 1000 | 950 × 1400 × 1100 | 1200 × 2000 × 1100 |

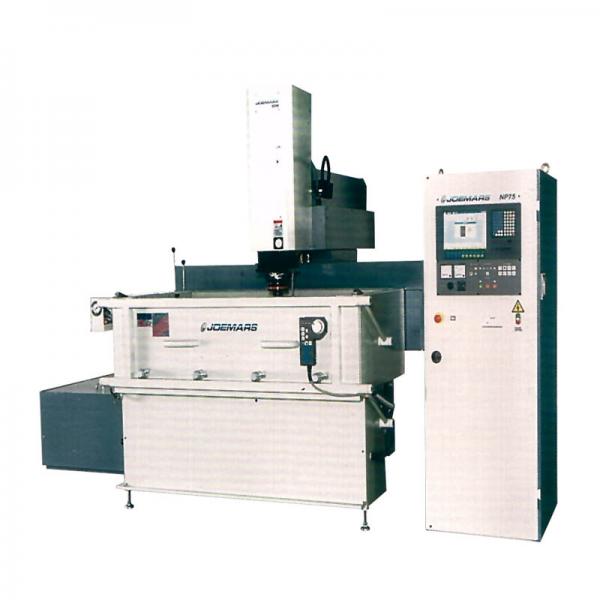

| Item | Model | JMNC1140 | JMNC1142 | ||
| Work table size | mm | 900 x 650 | |||
| X travel | mm | 1150 | |||
| Y travel | mm | 400 | |||
| Z travel | mm | 350 | |||
| Ram platen to work table | mm | 255 ~ 605 | 446 ~ 796 | ||
| Max. electrode weight | kgs | 150 | |||
| Max. workpiece weight | kgs | 2000 | |||
| Work tank ( W * D * H ) | mm | 1500 x 900 x 430 | 1600 x 900 x 430 | ||
| Weight of machine unit | kgs | 3400 | |||
| Outside dimensions ( W * D * H ) | mm | 2165 x 2495 x 2335 | 2165 x 2495 x 2660 | ||
| DIELECTRIC TANK | |||||
| Item | Model | D1140 | D1142 | ||
| Capacity | L | 1200 | |||
| Pump | HP | 0.85 HP * 2 pcs | |||
| Net weight | kgs | 300 | |||
| Filter method | Paper * 4 pcs | ||||
| Outside dimensions ( W * D * H ) | mm | 1350 x 2000 x 1100 | |||
| GENERATOR (CNC) | |||||
| Item | Model | NP75 | |||
| Max. Machining Current | A | 75 | |||
| Total Power Input | KVA | 7 | |||
| Max. Metal Removal Rate | mm³/min | 610 | |||
| Electrode Wear Ratio % | 0.2 | ||||
| Best Surface Roughness | μmRa | 0.2 | |||
| Net Weight | kgs | 330 | |||
| Outside Dimensions ( W x D x H ) | mm | 680 x 1070 x 1820 | |||
